Structural modeling of Na_v1.5 pore domain in closed state

Voltage-gated sodium (Na_v) channels are a class of trans-membrane ion channels that serve as channels for sodium ions to pass through the cell. Na_v1.5 is a cardiac isoform of Na_v channel and is the key target of pharmaceutical drugs. Knowing the tertiary structure of Na_v1.5 will facilitate to understand the molecular mechanism of the drugs. However, its three-dimensional (3D) structure is still unknown and so structural modeling methods have been predominantly employed to fill this gap (O’Reilly et al. 2012; Payandeh et al. 2011; Pless et al. 2011).

In the early stage, due to the lacking of experimental structures of Na_v channel, all modelled structures were modeled by using potassium channels as templates (Lipkind and Fozzard 2000; O’Reilly et al. 2012). The structures of bacterial Na_v channels, including Na_vAb (Payandeh et al. 2011, 2012), Na_vMs (Bagneris et al. 2014; McCusker et al. 2012), and Na_vRh (Zhang et al. 2012), were successively resolved and they revealed that the Na_v channels were formed by four domains (DI to DIV) and each domain consisted of six transmembrane segments. In each domain, voltage sensor domain (VSD) was composed by the first four transmembrane segments (S1 to S4) and the ion conducting pore domain (PD) was formed by the other two segments (S5 and S6), with the pore loop (P-loop) between them. Based on these structures, Na_v1.5 models were also reported (Ahmed et al. 2017; Moreau et al. 2015; Poulin et al. 2014; Wang et al. 2015; Xia et al. 2013). Recently, we also constructed an open-state structure of Na_v1.5 by using the bacterial Na_vMs as template (Ji et al. 2018). As we all know, the bacterial Na_v channel shares similar overall architecture with eukaryotic one but differs in that the former is homo-tetramer while the latter is non-homo-tetramer. Recently, the first structure of eukaryotic Na_v channel (Na_vPaS) at near-atomic resolution has been resolved (Shen et al. 2017) and this makes it possible to build structures of eukaryotic Nav channels with higher precision.

Homology modeling methods have been widely used to construct 3D models of proteins from their amino acid sequences (Korkosh et al. 2014; Lafita et al. 2018). These methods were based on the similarity of the sequence of the target protein to other proteins whose 3D structures were known. The Rosetta membrane homology modeling method (Sidhartha et al. 2010; Subbotina et al. 2010) were used for constructing 3D models of membrane proteins. It searched for fragments with similar sequences in 3D structure databases and could predict membrane protein structure with reasonable accuracy (Subbotina et al. 2010).

In the structural modeling, information of residue–residue contacts will facilitate to find out the best conformation from the modeled decoys by combining with energy score, but experimental information of residue–residue contacts is usually unknown in advance. Therefore, the prediction of the contacts from sequences will be very helpful. The direct coupling analysis (DCA) of co-evolutionary residues has been shown to be an efficient method to do this (Jarzynski 2012; Lunt et al. 2010; Morcos et al. 2014; Morcos et al. 2011; Weigt et al. 2009). DCA gives a score for each pair of residues in an amino-acid sequence or between two sequences to evaluate if the two residues can form contact.

In this work, we will model closed-state structures of Na_v1.5 pore domain (PD) based on the template of eukaryotic Na_v channel Na_vPaS (Shen et al. 2017) and apply RosettaMP energy and DCA to select the rational structures of monomers and PD. We will validate the modeled structures by docking closed-state local anesthetics (LAs) to it and compare their binding energies and binding sites with previous experimental results.

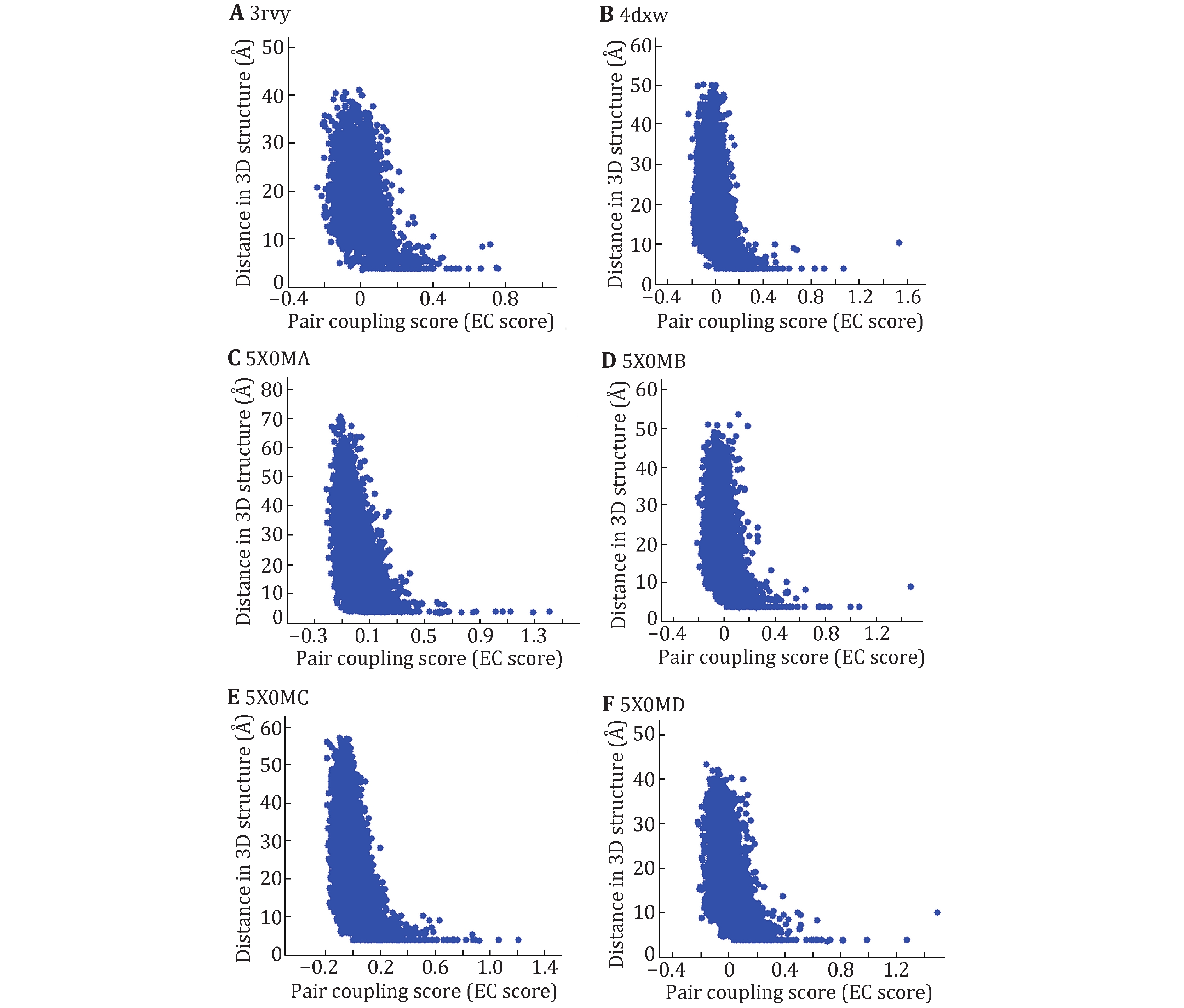

We first investigate whether the co-evolutionary residues of intra- and inter-domains of Na_v channels do exist in the tertiary structure by assessing blinded predictions of residue co-evolution against the determined structures Na_vAb (PDB ID: 3rvy), Na_vPaS (PDB ID: 5x0m) and Na_vRh (PDB ID: 4dxw). The results of the multiple sequence alignments were listed in supplementary Table S1. For each pair of residues within or across the domains, EVcouplings calculates an EC score for it, which describes the degree of co-evolution of the two residues. Because the four domains of Na_vAb and Na_vRh have the same sequence, but the four domains of Na_vPaS are different, we only calculate the EC score and residue–residue distances of one domain for Na_vAb and Na_vRh, and the EC score and residue–residue distances for Na_vPaS. Figure 1 shows the correlation between EC scores and residue–residue distances of intra-domains. Here we define that a pair of residues with an 8 Å minimum atom distance between them are in contact. From Fig. 1, we can find that the distance of two residues is usually less than 8 Å when the EC score is large than 0.2. Therefore, if the EC score of two residues is more than 0.2, the two residues are considered to form contact in the 3D structure.

Based on this threshold (0.2), the intra- and inter-contact pairs of the domains are predicted and the number of predicted contact pairs is labeled as CA_DCA. Number of contact pairs in 3D structure is labeled as CA_Str. To access the accuracy rate of the predicted contacts, we investigated the coincidence of the predicted contact pairs and those in 3D structure. Table 1 shows that among 52 predicted contact pairs in single domain, there are 32 contact pairs that do have contacts in the 3D structure of Na_vAb and the rate of correctly predicted is nearly 62%. In particular, among the predicted contact pairs with top ten EC scores, there are eight pairs in the 3D structure. Similar to Na_vAb, the accuracies for Na_vRh and Na_vPaS are more than 50% and for 5x0mD it is even more than 69%. Because among the three Na_v channels with known structures, only the domains of Na_vPaS have distinct conformations, it was chosen to be the evaluation protein to access whether the EC scores can be used to predict contact

residues between protein domains. The inter-EC pairs for Na_vPaS are listed in Table 2. Compared to intra-contacts, the accuracy of inter-contact prediction is very lower. For the adjacent domains (AB, BC, CD and AD), the precision is about 10%. These results demonstrate that the EC scores can be used to determine contacts in one of the domains of Na_v channels but are not good enough for inter-contacts between the domains. However, the latter can also be considered as a reference since we can see from Table 2 that the precisions of the predicted contacts between the adjacent domains are much higher than those of nonadjacent domains. By the way, these results also indicate that the formation of the tetramers of Na_v channels may not be determined mainly by the specific interactions of the co-evolved residues between the domains but by other interactions.

Using sequences of the four domains of Na_v1.5 as the input, we searched the database of Protein Data Bank (PDB, www.rcsb.org.com) using BlastP. From the search results, we found that compared to other four bacterial Na_v channels (Na_vAb, Na_vRh and Na_vMs, Na_vPaS), all of the four target sequences had the highest sequence identities (48%) with the corresponding domains of Na_vPaS. Meanwhile, Na_vPaS was the sole eukaryotic sodium ion channel with known tertiary structure by far and it had a closed pore. Hence, the structure of Na_vPaS was chosen as the template structure and the ROSETTA membrane-homology modeling method was used to model the PD structure of Na_v1.5 channel in closed state. The four target sequences were aligned to corresponding sequences of Na_vPaS by HHpred program with the parameters as system default (E-value cutoff 1 × 10⁻³, minimum coverage of multiple sequence alignment hits 20%, realignment threshold 0.3). The alignment results (supplementary Fig. S1) show that the insertion and deletion are mainly in P-segments but not any in S5 and S6. For each domain, 10,000 models were generated. Then, we calculated their energies by using RosetaMP and the distances between any two residues. We also calculated the EC scores of each residue pairs by using EVcouplings. For the four domains, 1939, 3923, 3390 and 3597 homologous sequences were used to generate the multiple sequence alignment to calculate EC scores, respectively. Table 3 shows the intra-EC pairs for the four domains of Na_v1.5. From Table 3, we can find that for domain 1, structure domain1_5x0mS_0177 and domain1_5x0mS_0467 are the top two structures with the highest energy score and precision of contact prediction, i.e. these two structures not only have the lowest energy, but also have the highest consistency of the residue–residue contacts with the DCA prediction. Hence these two structures were selected as the modeled structures of domain 1. Similar to this procedure, the modeled structures for other three domains were selected (the bold in Table 3). Meanwhile, we can find out that these selected structures have the lowest energy as well as higher precision of contact prediction. The Ramachandran plots of the selected models also show that the dihedral angles of all residues are located in the allowed regions (supplementary Fig. S2). The helices S5 and S6 of the selected models are nearly the same and the differences occur in the region of P-segments (supplementary Fig. S3).

Finally, 16 PD models were generated by using the selected models of the four domains and scored by RosettaMP. From Table 4, we can see that the RosettaMP energy of closed10 is the lowest. It is noted that the N/DCA value of closed10 is also the highest although its absolute value is low. Therefore, the closed10 is selected for subsequent research (the bold in Table 4).

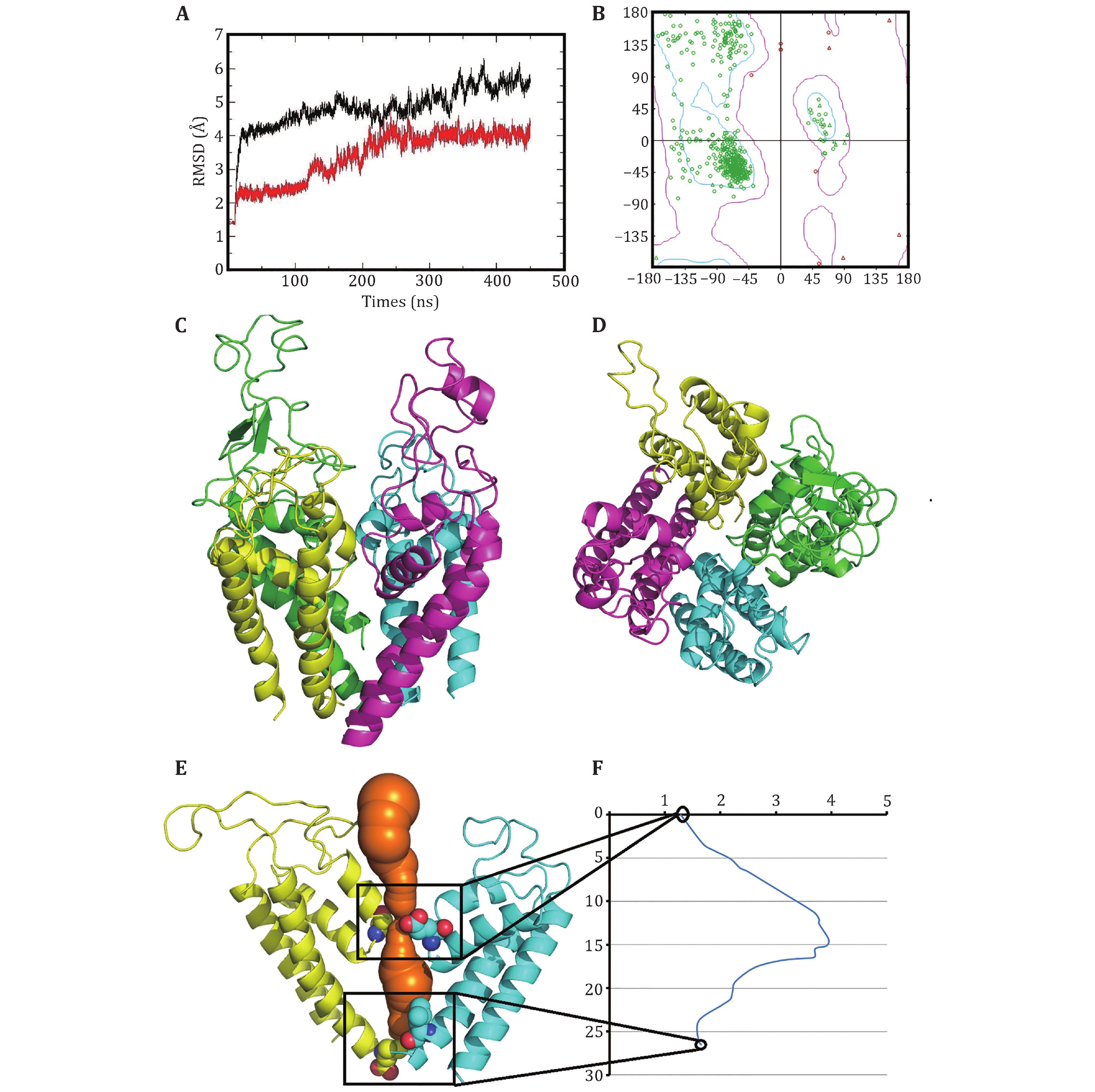

To destroy atom clashes and tensions, the close10 is further optimized by a 450-ns MD simulation and finally reaches an equilibrated structure with a fluctuated outer-membrane P-loops (Fig. 2A and supplementary Fig. S4). The Ramachandran plot also shows that the dihedral angles of almost all residues in the equilibrated structure are located in the allowed regions (Fig.2B). Figures 2C and 2D show the equilibrated structure from different views. Figures 2E and 2F show the channel and its radius versus distance along the channel direction for the equilibrated structure, respectively. They show that the diameter of the gate region is about 3.48 Å, which is much smaller than that of sodium ions (roughly 7.8 Å) and so sodium ions cannot pass through the channel in this case. This means that the constructed model is in closed state. Furthermore, Figures 3A and 3B show the selective filter (SF) of the close10 formed by the side groups of residues D121/E225/K356/A463 and the carbonyl oxygen atoms of their two preceding residues.

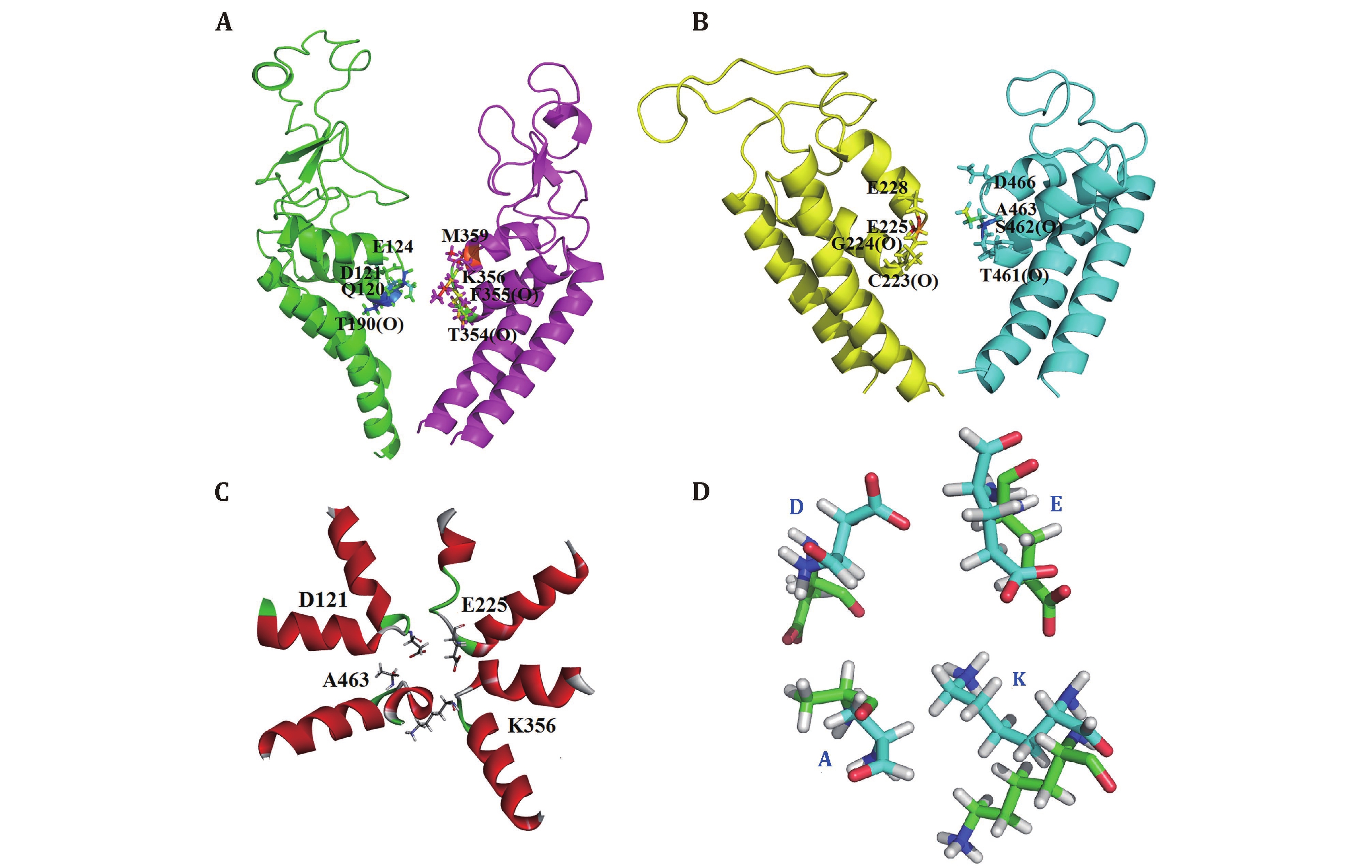

The outer negative ring that guards the entrance to the SF vestibule is formed by E124/E228/M359/D466. Compared to Na_vPaS, the differences are mainly in the orientation of residue K356 and D121 (Fig. 3C and 3D). Aligned the structure of the closed10 without outer membrane to its open state that we had constructed before by using TM-align (Zhang and Skolnick 2005), the result shows that the RMSD is 3.77 and the TM-score is 0.41606. Furthermore, in order to check the stability of the modelled structure, we calculated the diameter of the gate region and the all atoms RMSF during the simulation. For diameter calculation, the larger distance of D121-K356 and E225-A463 is defined as the diameter of the gate region of the corresponding frame. The results show that during the simulation, the diameter of the gate region is in the range of 4.19 to 1.21 (supplementary Fig. S5A), which is smaller than that of sodium ions, i.e. the door is closed during the simulations. RMSF values were then calculated to analyze the fluctuations of all residues (supplementary Fig. S5B). In supplementary Fig. S5B, the higher values are found in regions of loops and the connection areas of the domains. This means that the positions of residues in regions of S5, S6 and P-loops in the four domains are almost unchanged.

Previous studies show that the inner vestibule of Na_v1.5 PD is the binding pocket of open-state and closed-state LA drugs (Lipkind and M 2005) and the residues L214 (L1462 in Na_v1.5α) in S6 of D3, and F512 (F1760 in Na_v1.5α) and Y519 (Y1767 in Na_v1.5α) in S6 of D4 are parts of their binding sites. The closed-state LAs include Pilsicainide, Bisphenol A and Mexiletine, and the binding strength of them has been measured by experiments. Therefore, this information can be used to validate the closed10 model by finding the binding sites and binding energies of the closed-state LAs with the closed10.

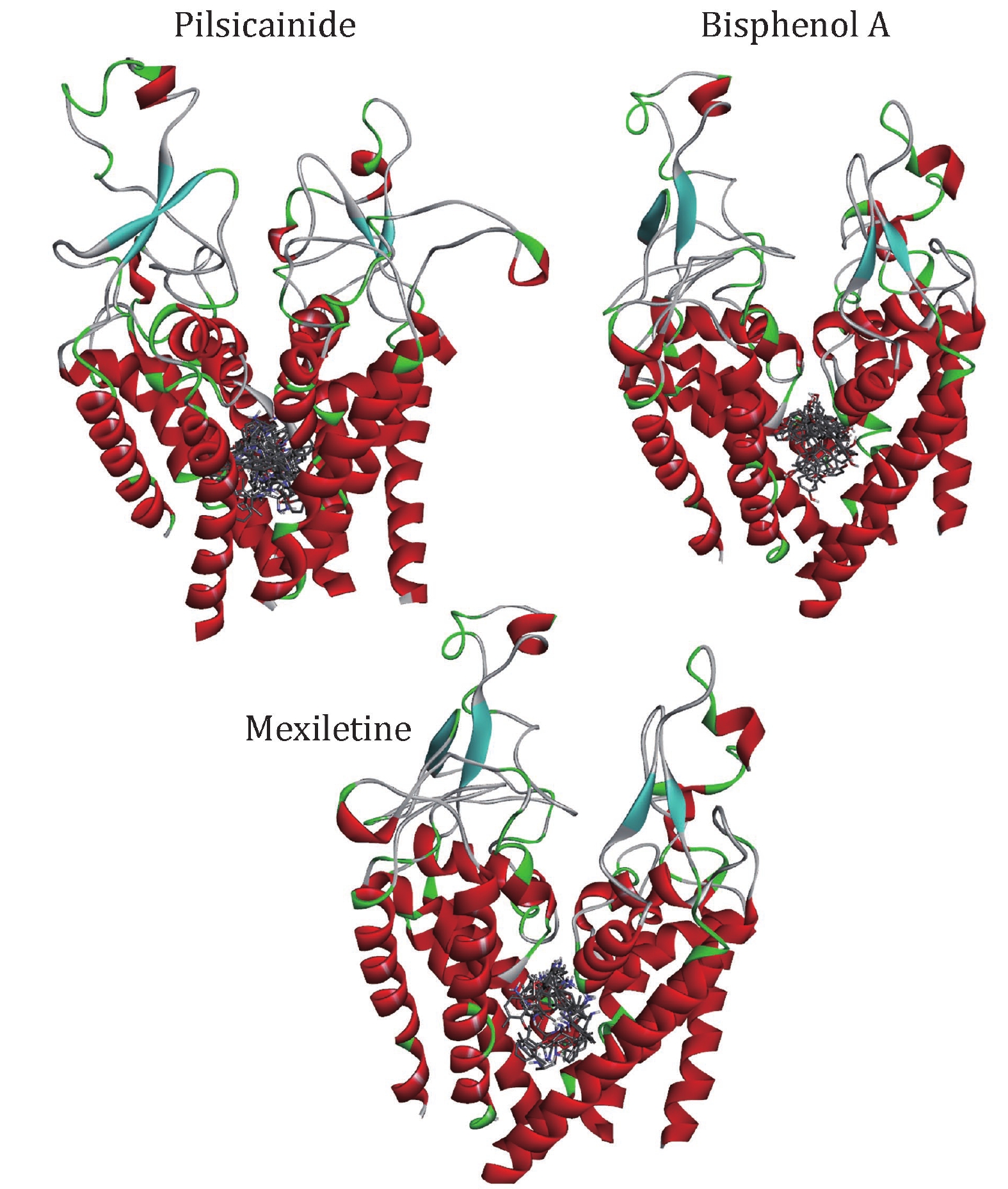

We docked the three closed-state LAs to the closed10. Three independent dockings were made and the conformations of LAs were clustered with the cutoff of 2 Å (Table 5). Mapping all of these conformations to the closed10 (Fig. 4), it can be found that all of them are located within the cavity enclosed by S6 segments. This result is consistent with previous reports. For Pilsicainide, Bisphenol A and Mexiletine, the clusters C1, C4 and C2 have the lowest average binding energy respectively, and the conformations with the lowest binding energy are also in these clusters. These three lowest energy conformations are chosen to select their complexes with the closed10, respectively.

In order to detect the ability of our model to discriminate strong from weak closed-state LAs, we calculated the binding energies of LA-closed10 complexes. For each complex, 300-ns MD simulation was done and the last 30 ns (3 × 10³ frames) was used to calculate the binding energy (Fig. 5). In order to clarify the dynamic stability of these structures, RMSD values were obtained using the initial structures as templates for ligands (supplementary Fig. S6). The L_RMSD plots show that the RMSD values of the atoms (in nofit) with respect to the initial structures increased for 150 ns. After that, they remained fluctuated around 1.7–2 Å until the end of the simulation. Thus, the trajectories of the MD simulations of these structures were reliable.

The binding energies calculated by MM-GBSA are summarized in Table 6. It can be found that polar solvation plays positive role while no-polar solvation plays negative role for interaction of LAs and Na_v1.5, i.e. van der Waals, electrostatic and accessible surface area facilitate the binding of LAs with Na_v1.5 while the polar solvation destabilizes their binding. Totally, the closed10 binds more tightly with Mexiletine than the other two Las, and binds most loosely with Pilsicainide. This result is consistent with the previous reports about K_d values of these three LAs (Li et al. 1999; Reilly et al. 2012; Pless et al. 2011).

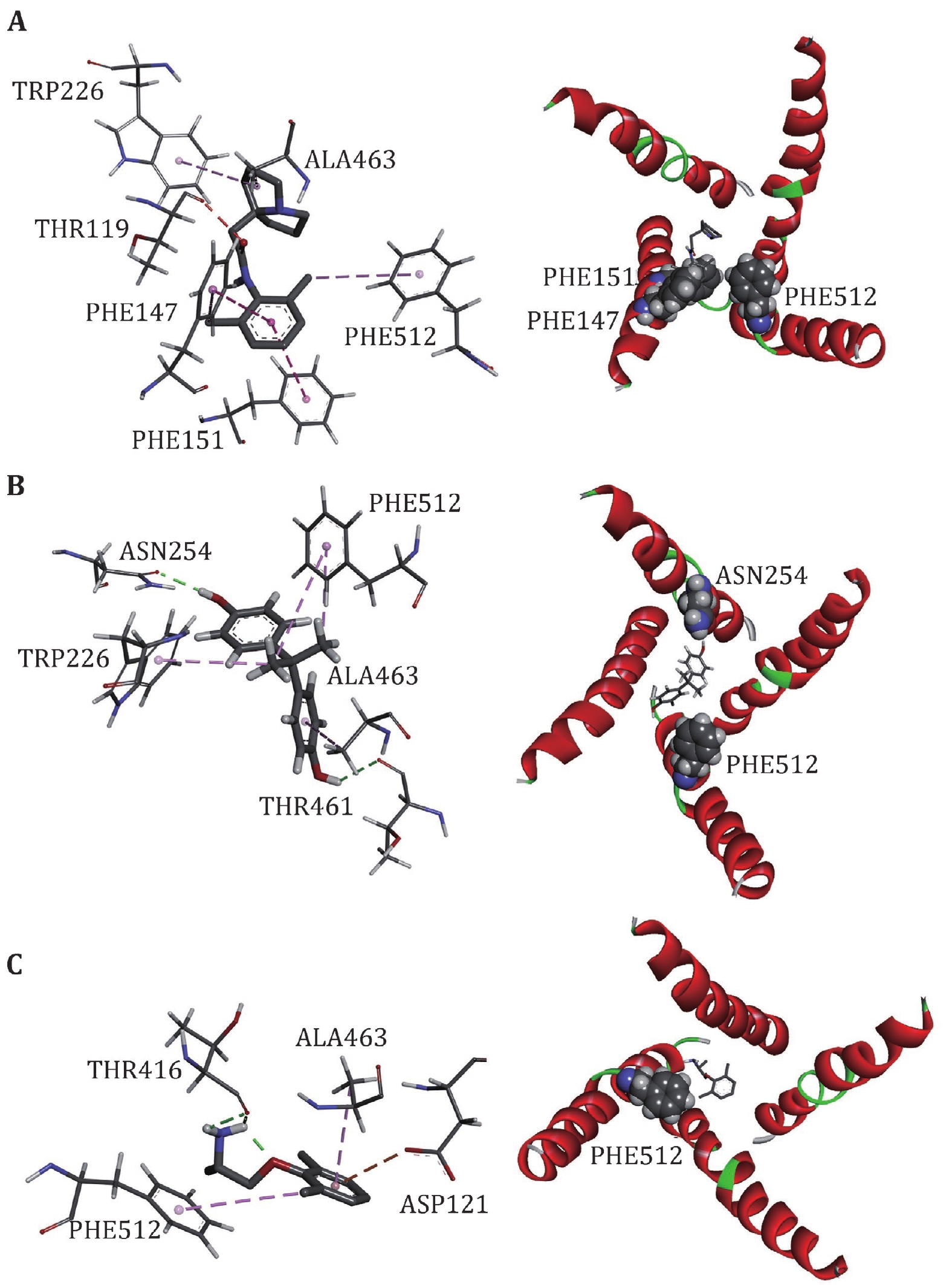

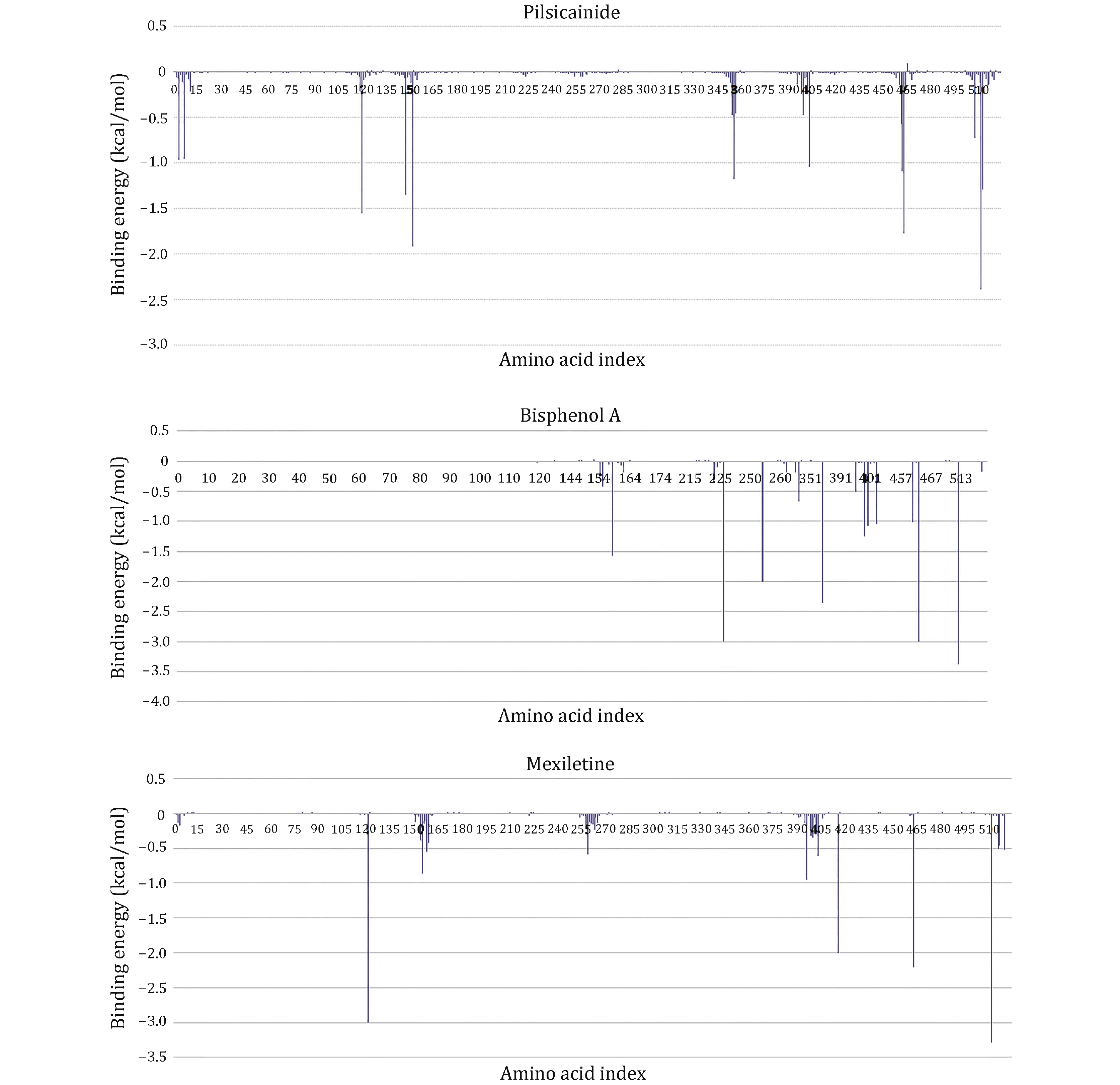

To further investigate the binding sites of LAs, the binding energies are decomposed to each residue (Fig. 6). For Mexletine, the interaction energy of D121 (−3.0035 kcal/mol), T416 (−2.001 kcal/mol), A463 (−2.202 kcal/mol) and F512 (−3.29 kcal/mol) are less than −2.0 kcal/mol. Of these four residues, the contribution of F512 (F1760 in Na_v1.5α) is the most significant, which is consistent with the previous report that this residue is the key residue of LA binding with Na_v1.5. According to the analysis of the interaction type (Fig. 7C), the interaction between F512 and Mexletine is mainly through the pi-alkyl interaction.

For Bisphenol A, the residues T226, N254, F355, T461, A463 and F512 play major role in the interaction between Bisphenol A and closed10. At the same time, we can see that Bisphenol A interacts with only F512 but not with Y519 (Y1767 in Na_v1.5α). Previous researches have shown that Y1767 played a vital role in the use of state-dependent inhibition for LA, and there was no significant effect in the tonic block. F512 is the same binding site of Bisphenol A and Mexletine.

Pilsicainide is the weakest inhibitor among the three closed-state LAs. The main sites of action are T119, F147, F151, W226, A463 and F512. Among these critical sites, only the interaction energy of PHE512 is lower than −2.0 kcal/mol, which contributes the highest binding energy to all residues. Although no experiments have been made to point out whether Pilsicainide has direct interaction with F512, it is an important binding site for LAs. We have reason to speculate that, similar to Bisphenol A and Mexletine, Pilsicainide also interacts with the F512.

In this work, the pore domain of voltage gated sodium channel Na_v1.5 in closed-state was constructed. The diameter of the final structure in the region of the activation gate is 3.48 Å and is less than the diameter of the hydrated sodium ion. It cannot allow the passage of sodium ions and demonstrates that the model we have built is in closed-state. Furthermore, the interactions between the model and the three closed-state LAs were also studied and the results further validated the reasonability of the built model. Our results may provide a reference for studying the mechanism of interaction between Na_v1.5 and LAs and may also provide a theoretical basis for further screening and design of drugs.

Recently it was shown that the residue–residue contacts might be determined by co-evolutionary residue pairs, i.e., if two residues in a protein sequence or in two different sequences form direct interaction or contact in 3D structure, they usually co-evolve (Jarzynski 2012; Lunt et al. 2010; Morcos et al. 2011, 2014; Weigt et al. 2009). DCA calculates a score for each residue pair in a sequence and the score can be used to evaluate if the two residues in the pair can form contact. The detail of DCA has been described in many papers (Jarzynski 2012; Lunt et al. 2010; Morcos et al. 2011, 2014; Weigt et al. 2009) and will not be explained here.

DCA uses aligned homologous sequences of the target sequence to analyze the co-evolutionary residues and calculates the score of evolutionary couplings (EC score) between two residues in the target sequence. The sequences of the four domains (DI–DIV) that form the Na_v1.5 PD were obtained from NCBI (http://www.ncbi.nlm.nih.gov/) and each of them or each two of them were used as the target sequence(s) to calculate the EC score. The DCA was performed on EVcouplings online server (Aurell and Ekeberg 2012; Hopf et al. 2014; Marks et al. 2011; Morcos et al. 2011) and by using a pseudo-likelihood maximization (PLM) approximation (Ekeberg et al. 2012; Morcos et al. 2011). The search tool HHblits (Remmert et al. 2011; Vikram et al. 2016) was used to generate multiple sequence alignment. In order to assess whether the EC scores can be used to determine residue–residue contacts within and between protein domains, we built an evaluation set. This evaluation set includes the Na_v channels with known structures. We calculated the EC scores and distances between each residue pair. The distance of a pair of residues is defined as the shortest atom distance between the two residues.

Using the ROSETTA-membrane modeling protocol (version 3.4) (Sidhartha et al. 2010; Subbotina et al. 2010), the Homology, de novo, and full-atom modeling of the four domains of the PD were built by the crystal structure of Na_vPaS (PDB ID: 5X0M) as template. Models with lower energy and higher contact coincidence were selected. The energy was calculated by rosettaMP (Alford et al. 2015) and the contact coincidence was defined by the ratio of the predicted contacts and the true contacts of the intra-domains. Then, these selected models were aligned to the corresponding domains of their templates by a structural alignment algorithm TM-align (Zhang and Skolnick 2005) to assemble them to form candidates of the PD structure. The energies of these assembled structures were then evaluated by using rosettaMP and the residue–residue contacts between two domains were analyzed by DCA. Similar to the selection strategy for the monomers or domain structures, the structures with lower energy and higher contact coincidence were selected. Here the contact coincidence was the ratio of the predicted contacts and the true contacts between two domains. The selected structure was kept for further optimization and analysis.

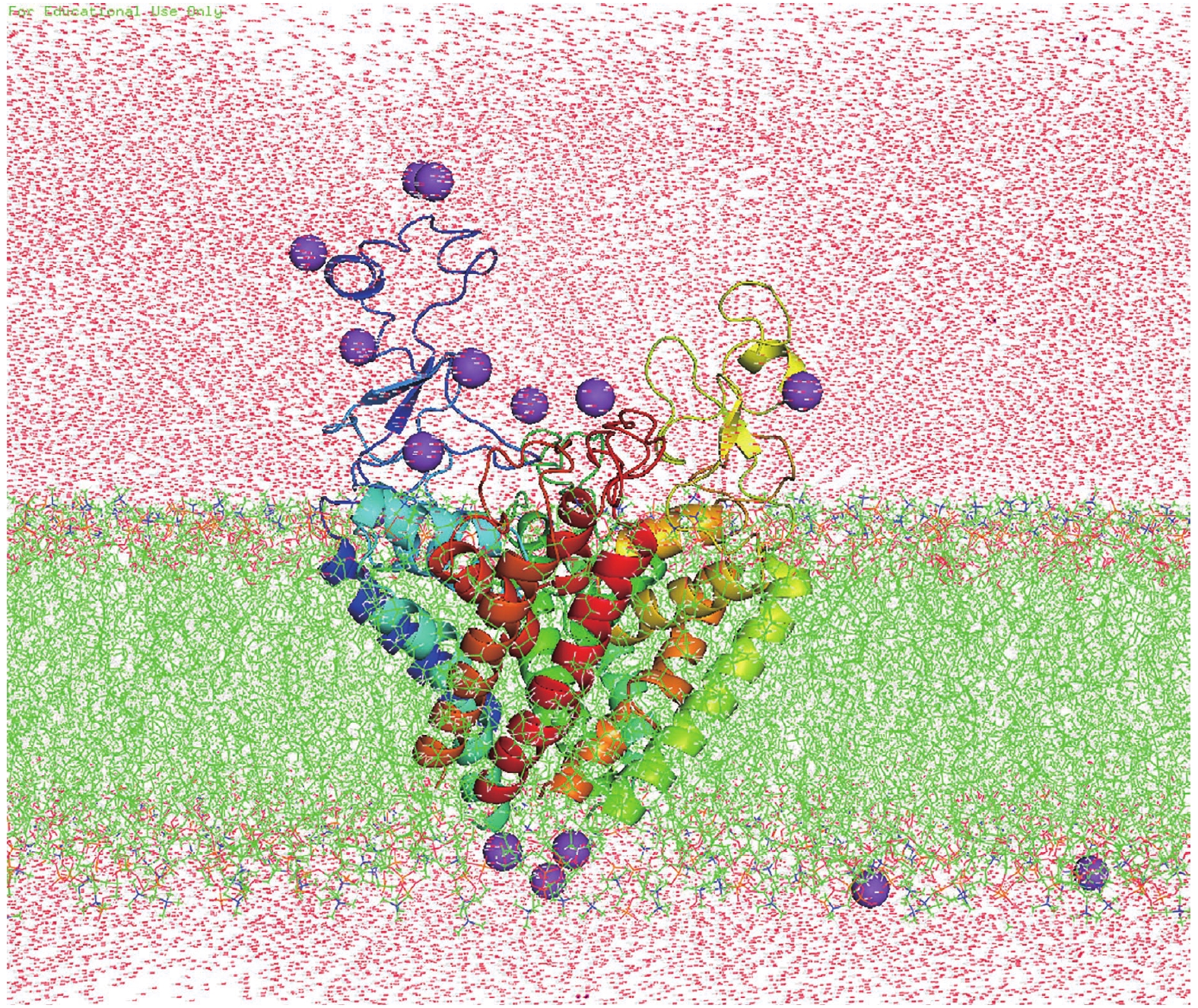

All Molecular dynamical (MD) simulations were done by the software package Amber16 (Case et al. 2016). The setting of parameters and MD process were nearly the same as our previous work (Ji et al. 2018) and only briefly described in the following: The modeled structure was oriented by using the PPM server (Lomize et al. 2011) along Z-axis and then embedded in a homogeneous palmitoyloleoyl phosphatidylcholine (POPC) bilayer and solvated by 20 Å water molecules on both sides of the membranes (Fig.8) by using Charmm-GUI (Lee et al. 2015). 0.15 mol NaCl was added to neutralize the system. The final system contained 166,700 atoms, including 8316 protein atoms, 444 POPC lipid molecules, 2889 water molecules, 13 Na⁺ ions. After 50,000 steps of optimization (25,000 cycles of steepest descent and 25,000 cycles of conjugate gradient minimization), the system was gradually heated from 0 to 300 K by Langevin thermostat in NVT ensemble. During the equilibration process, the protein was firstly fixed while water and lipid were allowed to equilibrate for 2 ns. Then the contraction of predicted contact residue pairs was restrained by a harmonic potential with force constant reducing gradually from 10 to 0.1 kcal/mol in four 10-ns running steps. Finally, the formal simulations were carried out for a total of 400 ns at constant temperature (300 K) and pressure (1 bar) conditions, which are maintained by using the periodic boundary conditions of NPT ensemble. The module of cpptraj in Amber16 software package was used to analyze the resulting trajectories and the code MOLE 2.0 (Sehnal et al. 2013) was used to calculate the pore radius.

For the docking calculations, three closed-state LA drugs (Pilsicainide, Bisphenol A and Mexiletine) were downloaded from the ChemSpider (http://www.chemspider.com/). These compounds are sorted in supplementary Table S2 according to their K_d values. In this work, Autodock4.2 was employed for docking calculations and Autodock Tools (ADT) (Morris et al. 2009) was used for preparing molecules and all of the hydrogens were added by using REDUCE (Word et al. 1999). The docking protocol is similar with the previous literature on ligand docking to Na_v channels (Lorena et al. 2016). Modeled structures were defined as receptors and the coordinates of AutoGrid center were determined by the center of the largest binding pocket, which was generated from receptor cavities. The grid size was set to 100 × 100 × 100 points with grid spacing of 10 Å. The grid box included almost the entire channel residues of the receptor. For drug molecules, they were defined as ligands. The procedure was carried out by keeping the protein rigid and the docked ligands were considered flexible. All of the docking decoys were clustered with cutoff 2 according to the root mean square deviation (RMSD) and the lowest-energy docked structures from each cluster were selected as the models of the docked ligand (MDL). Finally, the conformation with the lowest energy was selected as the complex structure for further analysis.

The selected docking poses of three LA_Na_v1.5 complexes were used as the initial structures for MD simulation. Topology and parameter files for ligands were generated using the antechamber program (Wang et al. 2006) in the Amber16 package. Partial charges of ligands were calculated using the AM1-BCC method (Araz 2002). Each LA_Na_v1.5 complexes was immersed in a 20 ų-sized cubic box of TIP3P water molecules, and the parameters for amino acids and ligand molecules were assigned using the AMBER-FF14SB force field (Maier et al. 2015) and the GAFF force field, respectively. The calculation steps and parameter setup were the same as those for Na_v1.5_PD mentioned above. For each LA_Na_v1.5 system, binding energies were computed using the popular Molecular mechanics/Generalized Born Surface Area (MM-GBSA) module of AMBER after equilibrium and using a 1-ps frame separation interval.

According to the MM-GBSA protocol, the free binding energy estimation (ΔG_bind) can be calculated as follow:

In the above equation, ΔG_bind is decomposed into different energy terms. Because the structures of LA_Na_v1.5 complex, receptor Na_v1.5, and ligand LAs are extracted from the same trajectory, the internal energy change is canceled. Thus, the gas phase interaction energy (ΔE_gas) between Na_v1.5 and LA is the sum of electrostatic binding energies (ΔE_ele) and the estimate of the lipophilic van der Waals interaction energy (ΔE_vdW) between the Na_v1.5 and LA. The solvation free energy (ΔG_sol) is formed by the polar and non-polar energy terms. The polar solvation energy (ΔG_GB) was calculated by using GB model. The non-polar contribution was calculated based on the solvent accessible surface area (ΔG_surf).
