Protein folding mechanism revealed by single-molecule force spectroscopy experiments

Protein folding mechanism is an open question in the field of biophysics for more than half century. One-dimensional amino acid sequence information of protein determines the three-dimensional structure of its native state and how fast it folds (Dill et al. 2008; Dill and MacCallum 2012; Finkelstein 2018). Native state of a protein is at the global minimal point on the free energy landscape (Fig. 1). Both static native structure and conformation transitions, including folding and unfolding transitions, are important to the function of each protein (Radford 2000).

X-ray refraction, nuclear magnetic resonance (NMR), and electron microscopy techniques have been developed and used to resolve the native structure of proteins. Biochemical methods have been used to trigger the folding and unfolding transitions of proteins to study their folding mechanism (Bartlett and Radford 2009). With the advance of computation capability and development of force field and simulation algorithm, molecular dynamic simulation can fold small proteins in microsecond to millisecond time scale (Bolhuis 2009; Freddolino et al. 2010; Best 2012; Piana et al. 2014). Based on the available structure of more than 150 thousand proteins, an artificial intelligence algorithm is able to predict the native structure of small proteins with more than 90% accuracy (Senior et al. 2020). But the folding mechanisms of proteins, especially proteins which can fold to pathogenic fibrous forms, like prion and Aβ proteins in Mad Cow and Alzheimer’s diseases, are still far from understanding totally (Dobson 2004; van der Kant et al. 2020).

In recent years, single-molecule force spectroscopy (SMFS) is increasingly active in the exploration of protein folding, conformational changes, assembly and function (Lipman et al. 2003; Hughes and Dougan 2016). To date, atomic force microscopy (AFM), optical tweezers (OT), and magnetic tweezers (MT) are the most widely used techniques in SMFS (Neuman and Nagy 2008). Comparing to biochemical methods using denaturant, free energy landscape tilts by the mechanical force along the force direction in a well-defined manner. Therefore, the force manipulation techniques give more quantitative information of the free energy landscape of proteins which determines both the stability and dynamic process of proteins.

Among AFM, OT, and MT techniques, AFM was firstly used to stretch proteins (Rief et al. 1997; Carrion-Vazquez et al. 1999). It was found that various proteins have different mechanical stability. At the same pulling speed, some proteins can sustain hundreds of pico-Newtons (pN), such as titin I27 and GB1, while some other proteins will unfold at tens of pN, such as spectrin (Rief et al. 1999). It was found that the unfolding force of a protein measured by AFM is related to the pulling geometry of the protein. Proteins can sustain a relatively larger shearing force than the unzipping force (Forman and Clarke 2007).

Due to the mechanical drift of AFM, the stretching cycle must be finished in several seconds. It is challenging to explore the proteins’ response to low forces by AFM, especially the mechanical stable proteins. At a high force, when the force-bearing bond is broken, then a small single domain protein commonly will unfold totally. Even if there are barriers with longer extension, the force will suppress them to make them undetectable.

Recently, OT and MT were used to investigate protein unfolding and folding problems, and force-dependent unfolding and folding dynamics at forces lower than 10 pN can be studied (Cecconi et al. 2005; Chen et al. 2011, 2013). In OT experiments, two beads coated with different bioconjugation molecules can be manipulated with two independently controlled optical traps (Whitley et al. 2018). The complicated folding process of complex multidomain proteins in the presence of chaperones and co-translational folding of a polypeptide just synthesized by ribosome can be studied by optical tweezers (Bustamante et al. 2020). The advantage of magnetic tweezers is their large force range, intrinsic force capability, and stability (Chen et al. 2011, 2015). The force from zero to more than 150 pN can be achieved easily with permanent rare-earth magnets and 2.8-μm diameter dynabeads (Guo et al. 2020). And the same protein tether can be continuously unfolded and refolded for hours to days (Popa et al. 2016; Yuan et al. 2017).

In this review, we firstly introduce the protein folding problem. After that, a summary of traditional biochemical methods and their typical results is outlined. Then we briefly described the technical principles of the SMFS techniques, including AFM, OT, and MT. The experimental results obtained by AFM at relatively large forces, and the recent results obtained by OT and MT at low forces are summarized. The correlations between protein sizes, mechanical parameters and folding/unfolding rates are analyzed for tens of different proteins. At last, our perspective of the protein folding problem by force spectroscopy methods is given.

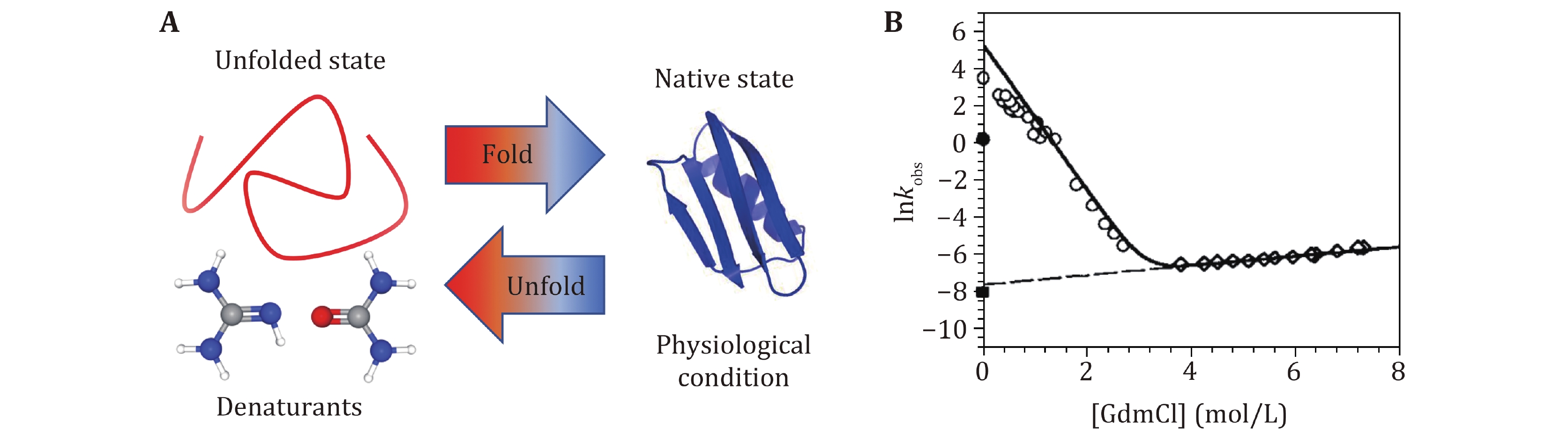

Different kinds of biochemical techniques have been applied to measure folding and unfolding rates of bulk protein ensemble in solution and provide important information, such as folding free energy, and the free energy difference between different conformations (Hu et al. 2016). Most proteins stay at their native state under physiological conditions. Usually, the concentration of denaturant (McCallister et al. 2000), temperature (Religa et al. 2005) or pH (Balbach et al. 1997) of solution can be precisely controlled to induce proteins denaturation. Guanidine Hydrochloride (GmdCl) and urea were widely used as the denaturant in protein folding/unfolding research (Fig. 2). Most proteins can fold and unfold reversibly when changing the concentration of the denaturant, and a stopped-flow instrument can change the denaturant concentration in a few milliseconds (Park et al. 1999; Lipman et al. 2003). Conformation transition rates can be quantitatively characterized by spectral methods (UV CD, intrinsic tryptophan fluorescence), nuclear magnetic resonance (NMR), or Mass Spectra (MS) methods. A detailed summary of experimental techniques working together with bulk biochemical denaturation experiments can be found in published reviews (Maxwell et al. 2005; Bartlett and Radford 2009).

Bulk biochemical experiments measure the average signals from all protein molecules in the detection region. But protein unfolding and folding transitions are stochastic processes, and the conformation transition of each protein molecule happens non-simultaneously. Therefore, bulk experiments easily lose the information from transient intermediate states, which can be overcome by single molecule experiments.

In the last three decades, SMFS has gradually become a major technique for investigating protein folding with its distinct advantages. SMFS breaks through the limitations of traditional biochemical techniques and can efficiently analyze the dynamic transitions of proteins under mechanical regulation at the single-molecule level. Popular SMFS techniques include AFM, OT, and MT (Neuman and Nagy 2008).

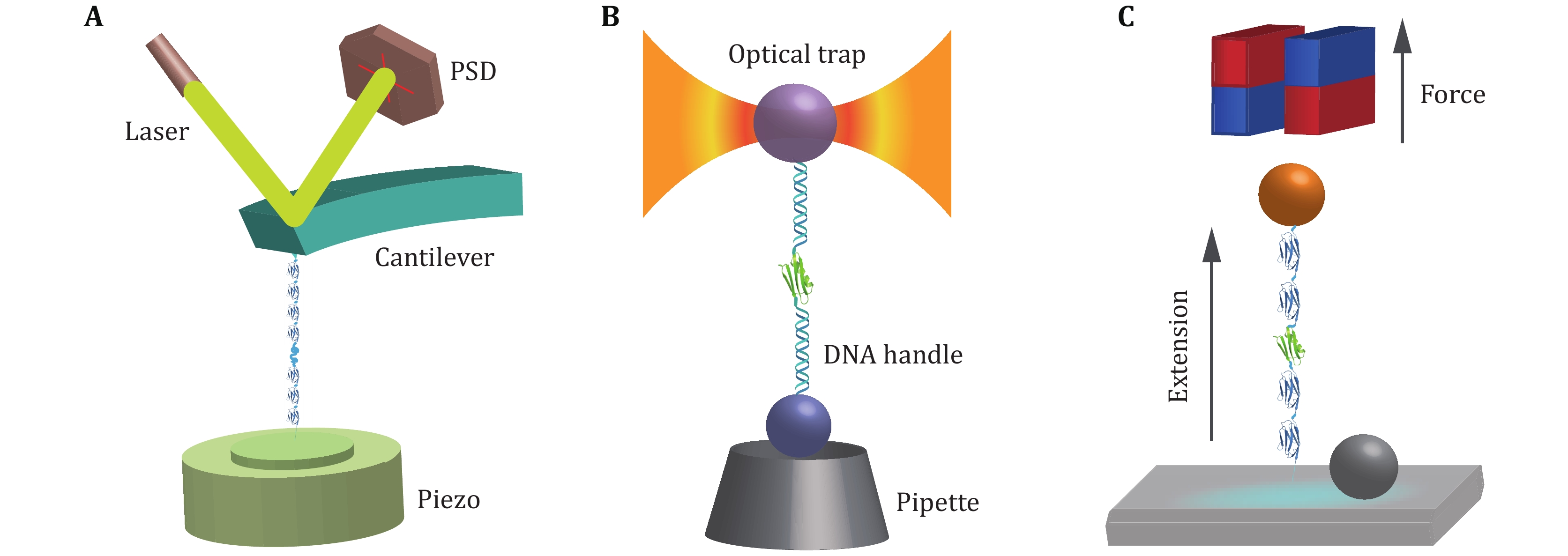

The principle of the AFM-based SMFS is shown in Fig. 3A. The ends of a constructed biological molecule are attached between the probe and the substrate by specific bioconjugation (Hinterdorfer and Dufrene 2006; Edwards et al. 2021) or non-specific binding (Rief et al. 1997). The biomolecule of interest is stretched by moving the piezoelectric-controlled micro-cantilever or substrate of AFM, and the resulting force and extension are measured in real time. The advantages of AFM are its high spatial and temporal resolution. The major disadvantage originates from the relatively high stiffness of the cantilever, which leads to a high minimal force and is hard to realize accurate measurements at forces smaller than 10 pN. Note that recently Perkins lab developed an AFM technique to study the force response to forces less than 10 pN for fast folding proteins with the modified AFM cantilever (Edwards et al. 2021). Another drawback of AFM is the mechanical drift caused by changes in the relative distance between the substrate and the cantilever, which can accumulate over time leading to severe system drift. Therefore, each stretching cycle by AFM is usually performed in a time scale of several seconds.

OT uses a microscope objective with a high numerical aperture to focus the laser to form a potential well of a microsphere with a diameter of several hundred nanometers to several micrometers (Ashkin et al. 1986) (Fig. 3B). When the microsphere moves away from the center of the optical potential well, the trap exerts a recovery force on the microsphere. The microspheres captured by OT are typically attached to the protein of interest through two DNA handles. The precision offered by OT with low-noise, low-drift, and high spatial-temporal resolution (Choudhary et al. 2019) is accompanied by non-negligible shortcomings, such as local heating (Peterman et al. 2003; Seol et al. 2006) and optical damage (Liang et al. 1996; Neuman et al. 1999) of the trapped specimens.

Different from AFM and OT, an intrinsic constant force is applied on the paramagnetic bead by gradient magnetic field (Fig. 3C). The principle of force generation in MT does not rely on the microscope, its force control and optical measurement are independent, which provides MT the capability to continuously measure the same individual molecule for several hours or even days (Chen et al. 2015; Lof et al. 2019). In addition, MT can easily twist molecules by rotating magnets, which is of great importance in the study of DNA super-coiling properties (Strick et al. 2000; Charvin et al. 2005; Gore et al. 2006). MT applies an intrinsic constant force to the biomolecule of interest, while AFM and OT need sophisticated feedback systems to maintain constant force roughly (Schlierf et al. 2004). Furthermore, the feasible force range of MT is from zero to more than 150 pN (Guo et al. 2020), which covers the full range of physiological forces of a single biomolecule in cells.

The single-molecule force spectroscopy provides a powerful method for investigating the transition of molecules along with specific reaction coordinates. In these techniques, molecules and complexes of interest are subjected to pN levels of the applied force by experimental devices through a certain length of the molecular handle, and their response to stretching is recorded. Theoretical efforts have greatly facilitated the link between molecular response and free energy landscape, thus providing sufficient kinetic information. Note that values of dynamics parameters taken out of the context of the experiment setup, the pulling spring stiffness (K), the length of handle (L), and the loading rate are meaningless (Maitra and Arya 2010; Maitra and Arya 2011; Noy 2011). For example, the deviations are negligible (<5%) for small K and large L whereas the deviations can be as high as 35% for the largest K (Maitra and Arya 2011).

Based on a vast amount of available publications, we summarize the experimental results of two-state proteins by AFM. The dataset exhibited in Table 1 covers the mechanical unfolding properties of 30 proteins, which includes the protein structure information and some thermodynamic and kinetic characteristics. It is remarkable that certain universal principles are already well accepted. The arrangement of the secondary structure of the protein is of particular importance. Various proteins with distinct topologies have different mechanical properties (Li 2007; Hughes and Dougan 2016). For example, proteins can be roughly ranked according to the content and arrangement of their secondary structures — proteins with structures of all α-helix are relatively mechanically weak, while those containing multiple β-strands have high mechanical stability. The pulling geometry of proteins also plays an important role in the unfolding force, where the force for shearing geometry is greater than that for unzipping geometry.

The previous review articles provided an understanding of the relationship between the native structures of proteins and their mechanical stability and malleability. A crucial structural region in a protein that is of responsibility for the resistance to stretching is often composed of hydrogen bonds among adjacent β-strands (Hoffmann et al. 2013; Hughes and Dougan 2016). As a result, this feature grants mechanical stability to proteins, and broken of those hydrogen bonds acts as a rate-limiting step for unfolding at large force. Figure 4A reveals a strong correlation between the unfolding force (F_u) and the unfolding distance (x_u), which is the distance from the native state to the unfolding transition state. Proteins with low F_u possess a large x_u and proteins with high F_u own a small x_u. The global tendency, meanwhile, is that pure α-helix proteins are mechanically weaker than proteins with mixed α-helix/β-sheet and all β-sheet proteins. LeBlanc et al. have successfully fitted the shape of the x_u vs. F_u plot by using the Bell-Evans equation F_u = k_BT/x_u ln[r · x_u/(k_u⁰ · k_BT)] with loading rate r = 200 pN/s and zero-force unfolding rate k_u⁰ = 0.2 s⁻¹, which highlights the role of x_u in governing the mechanical stability of proteins with different structures (Leblanc et al. 2021).

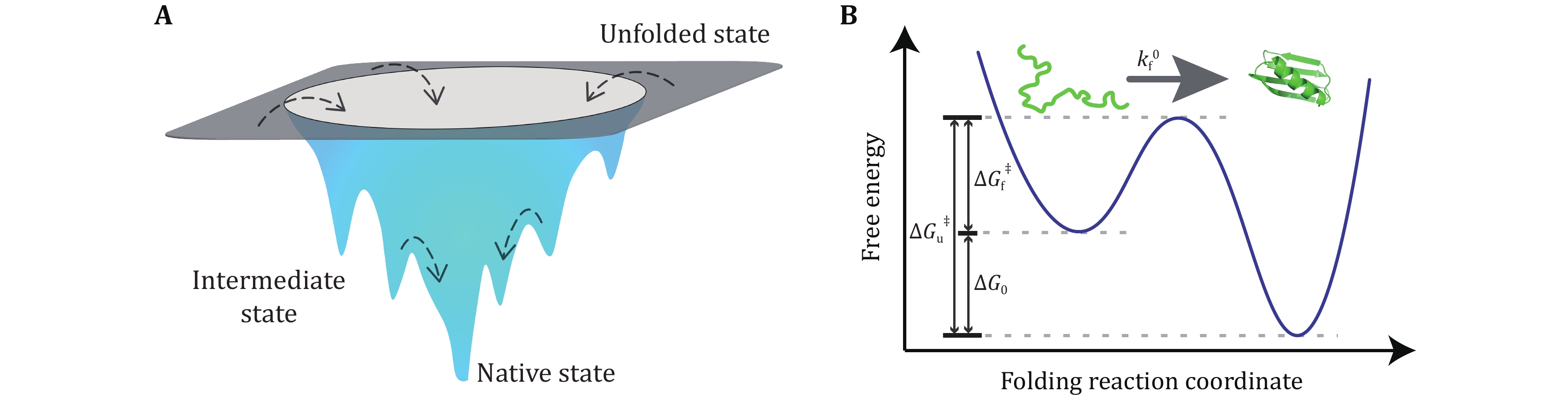

Clearly, the presence of external forces tilts the energy landscape of the protein, which consequently lowers the unfolding energy barrier. Here, the product of F_u and x_u is crucial, which mirrors the work done by the external force over the distance from the native state to the transition state of the protein. It can be, hence, an indicator of the change in the unfolding free energy barrier. Figure 4B exhibits the dependence of the zero-force unfolding rate k_u⁰ on the product of F_u and x_u. Obviously, F_u · x_u has a strong correlation with k_u⁰. Proteins with lower F_u · x_u unfold faster than those with higher F_u · x_u. Hoffmann et al. proposed that a lower unfolding barrier for proteins with lower F_u · x_u could explain this observation (Hoffmann et al. 2013).

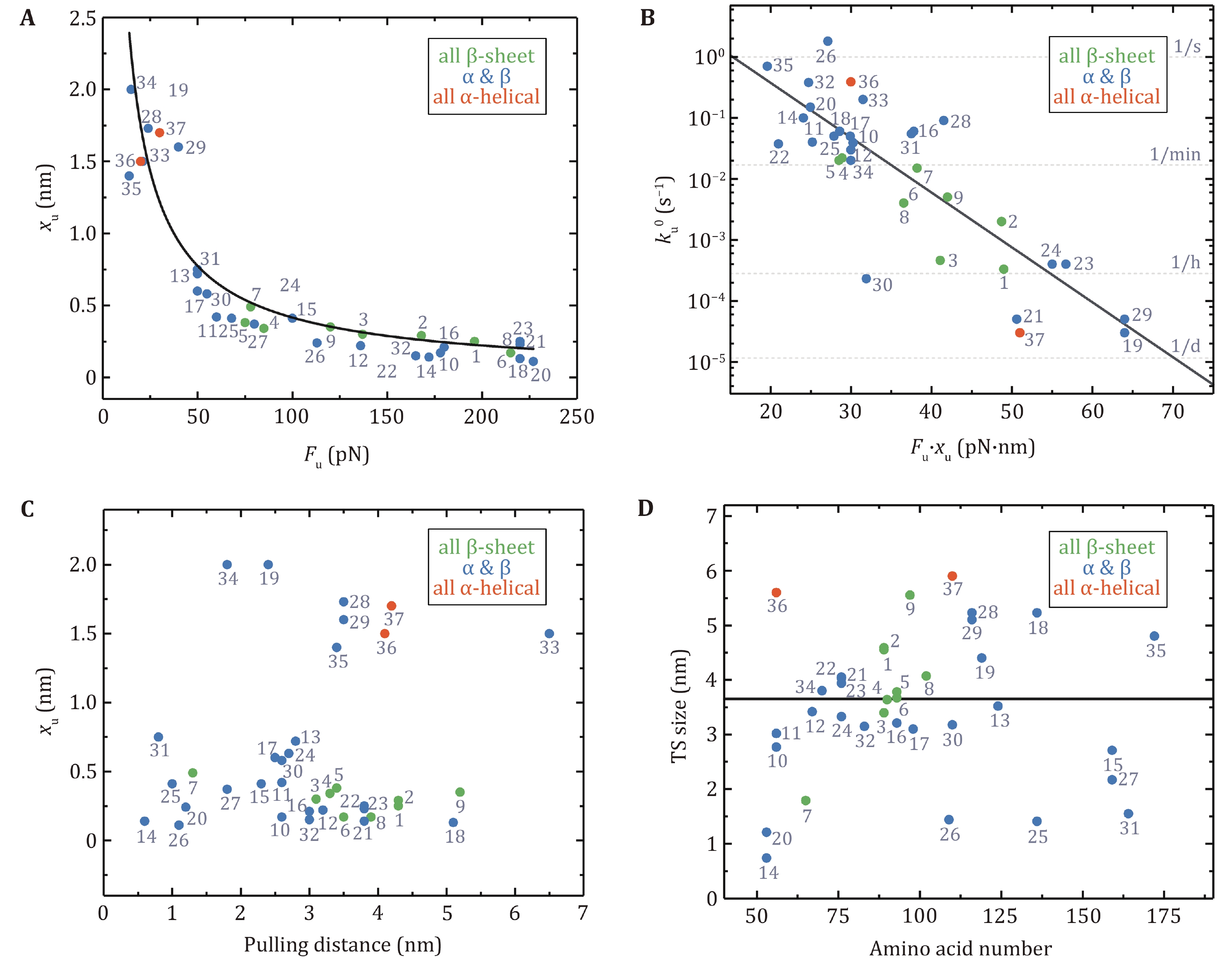

The Bell model usually gives a nice description of the force-dependent unfolding rates over the AFM force range for two-state proteins. Unfolding distance, x_u, as an important parameter determined by the model, is a perfect indicator of protein deformation when it crosses the potential barrier. x_u indicates the level of protein softening. The larger the x_u, the more significant the protein malleability, and vice versa. Figure 4C shows x_u as a function of the distance between pulling points in the native state (defined as pulling distance), which demonstrates little correlation. But one can easily notice that x_u of proteins consisting of all β-sheet chains is rather small, and x_u of proteins with pure α-helix chains is slightly larger, while proteins with mixed α-helix and β-strands have x_u over a large range. The inter-strand hydrogen bonds between β-strands provide more mechanical stability than hydrophobic contacts between α-helixes.

The size of the unfolding transition state can be calculated by the sum of the distance between pulling points in the native state and x_u of the protein. The number of amino acids in a protein determines the size of the globular native state. Nevertheless, there is no apparent correlation between the size of the transition state obtained at large force by AFM and the amino acid numbers of the proteins (Fig. 4D).

Apart from elucidating the mechanical properties of proteins under large forces by AFM (Table 1), recently, the force-dependent folding and unfolding rates of some proteins are studied by OT and MT at low forces adjacent to the critical force at which the protein has 50% probability in the unfolded state. For a two-state protein, the protein transits between the unfolded state and the native state by crossing the transition state. From the force-dependent folding rate, the size of the folding transition state can be determined, which is usually identical to the size of the unfolding transition state at the same force range (Su et al. 2021), indicating the folding and unfolding transitions are through the same pathway. Here we summarize the properties of proteins whose force response has been measured at low forces by OT and MT in recent years (Fig. 5 and Table 2), and performed some correlation analysis.

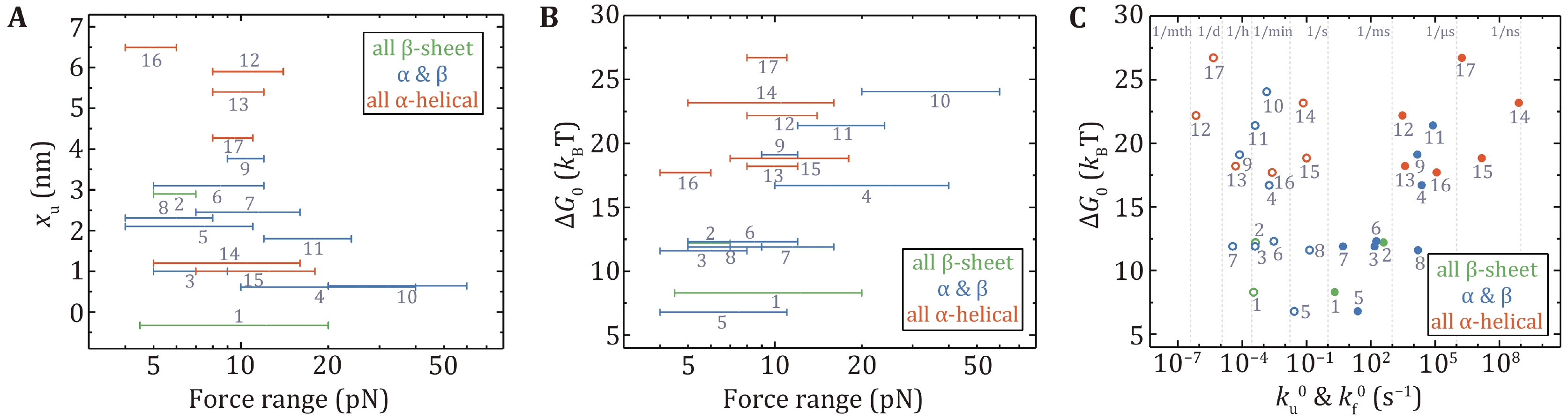

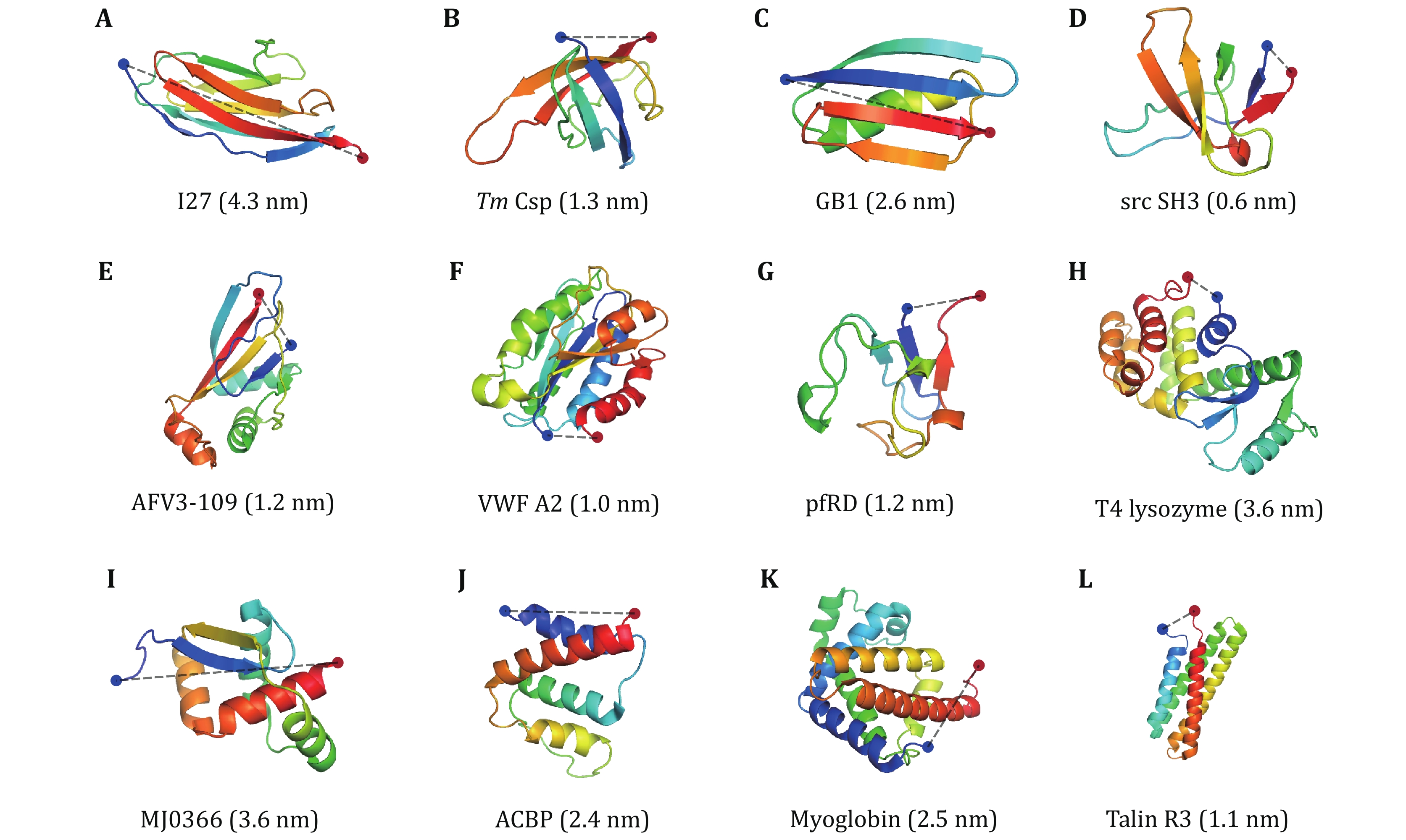

Figure 6A shows x_u vs. the force range of the measurement. Except for I27 and T4 lysozyme, all proteins had x_u from 1.0 nm to 6.5 nm, which means that they need to deform significantly to arrive at the transition state in the low force region. The x_u of I27 is –0.33 nm at forces less than 20 pN, which means that the increasing force actually slows down the unfolding transition (a catch-bond behavior) (Yuan et al. 2017). T4 lysozyme only requires a small deformation to unfold mainly due to the coupling effect between its domains (Shank et al. 2010). It is noteworthy that NuG2 is a computationally designed fast-folding variant of the protein GB1 (Nauli et al. 2001, 2002). NuG2 exhibits different x_u in distinct force ranges from the data obtained using AFM and OT (He et al. 2015; Lei et al. 2017). On one side is due to the limitations of different research equipment and on the other side, it confirms that the x_u of the protein is force-dependent.

The thermodynamic stability of a protein is given by the free energy difference between the unfolded state and the native state. The force-dependent folding free energy ∆G(f) can be determined by the ratio of the folding rate k_f(f) and the unfolding rate k_u(f) at low forces: ∆G(f) = k_BT · ln(k_f(f)/k_u(f)), from which the zero-force folding free energy ∆G₀ can be obtained. Figure 6B presents the relationship between the experimental force range and ∆G₀. The trend is that as the experimental force increases, ∆G₀ gets larger. A point worth noting is that ∆G₀ of the proteins with all α-helix is larger than most of the proteins containing β-strands. Another finding is that there is a positive correlation between k_u⁰ and ∆G₀, and a negative correlation between k_f⁰ and ∆G₀ (Fig. 6C).

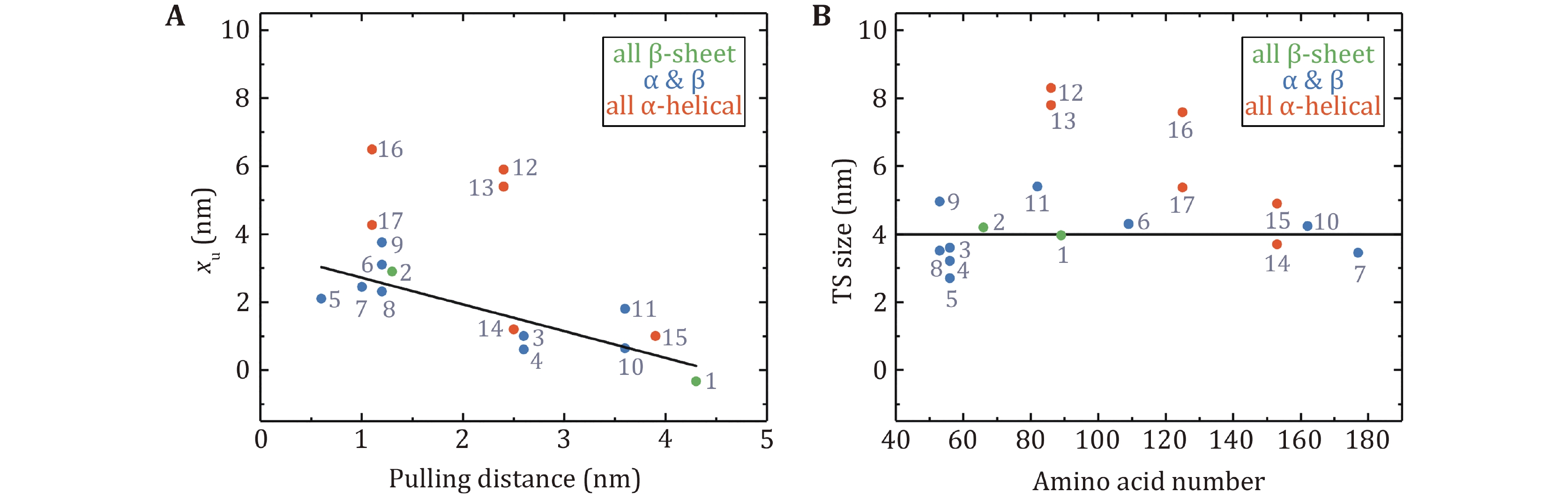

It is notable that x_u for globular proteins with β-strands obtained from low forces measurement is correlated with the pulling distance (Fig. 7A). The unfolding distance x_u of proteins decreases as the pulling distance increases, even to a negative value for titin I27 with a pulling distance of 4.3 nm (Yuan et al. 2017). For proteins with the N- and C- termini as the pulling points, x_u of proteins with "shearing" stretching geometry is relatively small because of their large N–C distance, while x_u of proteins with "unzipping" pulling geometry is generally big due to their small N–C distance.

More interestingly, most proteins display certain uniformity in the size of transition states, which is 4.0 ± 0.8 nm (mean ± SD) (Fig. 7B). It is perhaps of pivotal implication in the protein folding mechanism, which will be discussed in the next section. On the other hand, for most proteins composed of only α-helix secondary structure, such as α-helix bundles, the hydrophobic core formed by inter-helix interactions as the predominant potential barrier demands a relatively large deformation to overcome the barrier during the unfolding process.

In conclusion, we have analyzed the correlations of major parameters of proteins, including the unfolding force (F_u), the transition distance (x_u), the folding and unfolding rates (k_f⁰ and k_u⁰) at zero force, and the folding free energy (∆G₀), investigated by SMFS at different force ranges. Although these correlations stand for the average behavior of numerous different proteins, it remains a helpful observation to predict the mechanical stability of the proteins of interest and to judge the degree of deviation of the studied proteins from the average behavior.

In force spectroscopy experiment on protein unfolding studies by AFM, the high force measurement reveals the mechanical stability of proteins which is mainly determined by the strength of a so-called “mechanical clamp” in many proteins. A mechanical clamp is a structural domain of a protein that is responsible for the resistance to stretching. Therefore, this factor grants mechanical robustness of the protein, and breaking of the “mechanical clamp” serves as the rate-limiting step for the unfolding of a protein (Sikora et al. 2009, 2010; Hughes and Dougan 2016). From the view point of the free energy landscape, only the local region close to the native state is responsible for the unfolding process in high force measurements (Fig. 8).

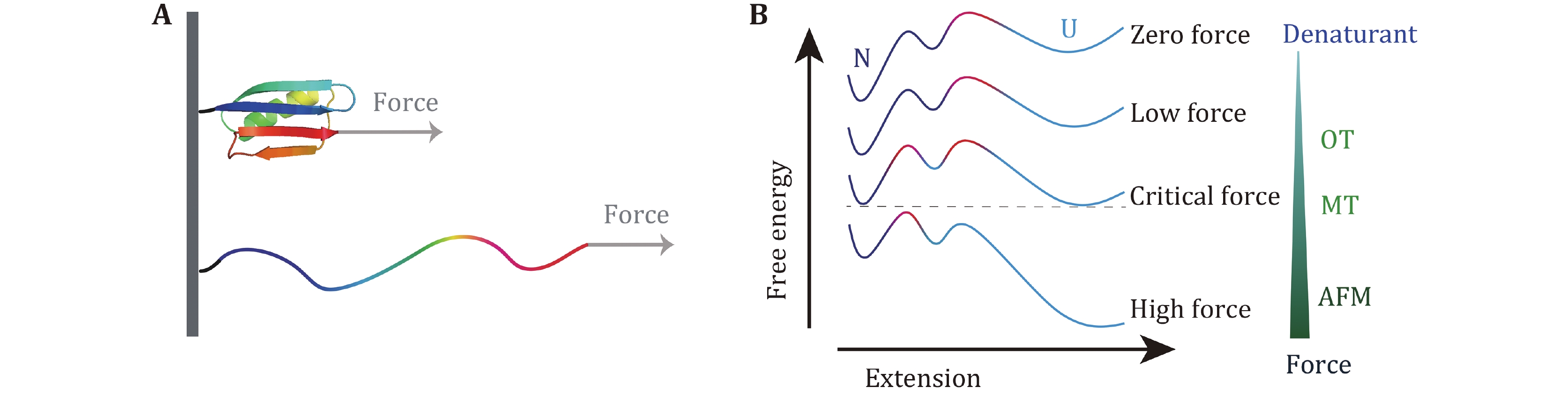

To unveil the protein folding mechanism, denaturants and the stretching force are used to trigger the folding and unfolding transitions (Banachewicz et al. 2011; Lv et al. 2012). Extrapolation to the condition without denaturants or stretching force is usually done to study the folding mechanism at physiological conditions (Banachewicz et al. 2011; Nasreen et al. 2020; Su et al. 2021). If the experimental condition is too far away from the physiological condition, the extrapolation might have problems as the slope of the fitting line might change when the environment condition is approaching the physiological condition (Chen et al. 2015; Guo et al. 2020; Yuan et al. 2017). Therefore, low force measurement provides indispensable information on the protein folding mechanism.

Critical forces at which the protein has an equal folding rate and the unfolding rate is usually smaller than 10 pN. The extrapolation will not deviate too much when it is done based on force-dependent folding rate and the unfolding rate at forces less than 10 pN. We found that sizes of the transition states at low force region are about 4 nm for compact two-state globular proteins. This general transition state is almost independent of the specific structure of each protein. If the unfolded state can be modeled as a random coil, the size of the unfolded state is more than 6 nm for proteins longer than 60 amino acids. Theoretically, a collapsed molten globule state is predicted to form before folding to the native state (Elms et al. 2012; Kuwajima 2020). We propose that this 4-nm transition state is the universal barrier between the unfolded state and the intermediate molten globule state (Fig. 8).

Comparing to the large number of available unfolding measurements done by AFM at a high force range, the low force responses of proteins have only been done for a limited number of proteins. To reveal the general protein folding mechanism of different kinds of proteins, from the simple down-hill or two-state single domain proteins to larger proteins with several folding intermediate states, from compact globular proteins to alpha-helix bundle proteins, membrane proteins, and fibrous proteins, from soluble proteins to protein aggregates, we expect that force-dependent folding and unfolding transitions at low forces for a growing number of proteins will be studied in the future.
